Series MF9-S
| Power (20% d.c.) | 143 - 447 kVA |
| Power (50% d.c.) | 91 - 283 kVA |
| Secondary voltages | 6,4 - 21,4 V |
| Secondary permanent current | 7,5 kA |
| Frame size |
125 x 160 mm |
Help on sizing the transformer you find here.
Make a request
Download datasheet
Series MFJ
- MF replacement for ISO series J
| Power (20% d.c.) | 167 kVA |
| Power (50% d.c.) | 118 kVA |
| Secondary voltage | 8,9 V |
| Secondary permanent current | 7,2 kA |
| Frame size | 125 x 160 mm |
Series X
- Gun transformer CNOMO E34.73.460.N
| Power (20%d.c.) | 87,2 - 186,4 kVA |
| Power (50%d.c.) | 55,2 - 118 kVA |
| Secondary voltage | 6,3 - 13,5 V |
| Secondary perm. current | 6,2 kA |
| Frame size | 125 x 160 mm |
Series Z
- Gun transformer CNOMO E34.73.460.N
| Power (20%d.c.) | 87,2 - 186,4 kVA |
| Power (50%d.c.) | 55,2 - 118 kVA |
| Secondary voltage | 6,3 - 13,5 V |
| Secondary perm. current | 6,2 kA |
| Frame size | 125 x 160 mm |
Suspended transformers - connection type C
| Nominal power (50% d.c.) | 100 ... 200 kVA |
| Secondary voltage | 15,3 ... 22,0 V |
Suspended transformers - connection type D
| Nominal power (50% d.c.) | 100 ... 180 kVA |
| Secondary voltages | 18,0 ... 25,2 V |
US 100kVA Comau
- Gun transformer for US frame size
| Power (50% d.c.) | 100 kVA |
| Secondary voltage | 8,3 V |
| Secondary permanent current | 7,7 kA |
| Frame size | 127 x 171,5 mm |
US 100kVA MFDC-7412
- Gun transformer for US frame size
| Power (50% d.c.) | 127 kVA |
| Secondary voltage | 8,9 V |
| Secondary permanent current | 7,7 kA |
| Frame size | 127 x 171,5 mm |

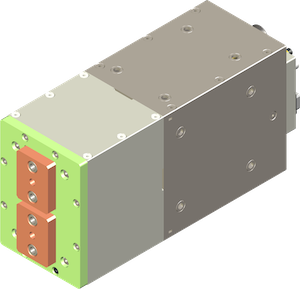

US 170kVA MFDC-8521
- Gun transformer for US frame size
| Power (50% d.c.) | 173 kVA |
| Secondary voltage | 12,5 V |
| Secondary permanent current | 7,7 kA |
| Frame size | 127 x 171,5 mm |
US 200kVA MFDC-8250
- Gun transformer for US frame size
| Power (50% d.c.) | 222kVA |
| Secondary voltage | 12,5 V |
| Secondary permanent current | 10,0 kA |
| Frequency | 1800 Hz |
| Frame size |
157 x 171,5 mm |
